Release Signoff Checklist

Items marked with (R) are required prior to targeting to a milestone / release.

• (R) Enhancement issue in release milestone, which links to KEP dir in kubernetes/enhancements (not the initial KEP PR)
• (R) KEP approvers have approved the KEP status as implementable
• (R) Design details are appropriately documented
• (R) Test plan is in place, giving consideration to SIG Architecture and SIG Testing input (including test refactors)
  • e2e Tests for all Beta API Operations (endpoints)
  • (R) Ensure GA e2e tests meet requirements for Conformance Tests
  • (R) Minimum Two Week Window for GA e2e tests to prove flake free
• (R) Graduation criteria is in place
  • (R) all GA Endpoints must be hit by Conformance Tests
• (R) Production readiness review completed
• (R) Production readiness review approved
• “Implementation History” section is up-to-date for milestone
• User-facing documentation has been created in kubernetes/website , for publication to kubernetes.io
• Supporting documentation—e.g., additional design documents, links to mailing list discussions/SIG meetings, relevant PRs/issues, release notes

Summary

This KEP proposes to introduce a new CPU Manager static policy option, “prefer-align-cpus-by-uncorecache”, that groups CPU resources by uncore cache where possible. An uncore cache, also known as the last-level-cache, refers to the cache that exists at a shared level among CPU cores, unlike low-level caches which are dedicated per individual core. The opt-in feature changes the CPU assignment algorithm to recognize and sort CPUs by uncore cache, and then allocate CPUs aligned to the fewest uncore caches as possible. This is primarily beneficial for CPU architectures that utilize multiple uncore caches, or split uncore caches, within the processor. In cases where the number of CPUs requested exceeds the number of CPUs grouped in a uncore cache, the algorithm attempts to align allocations at a best-effort policy to reduce assignments of CPUs across minimal uncore caches. If the CPU Manager cannot align optimally, it will still admit the workload as before. Uncore cache assignment will be preferred but not a strict requirement for this feature.

Motivation

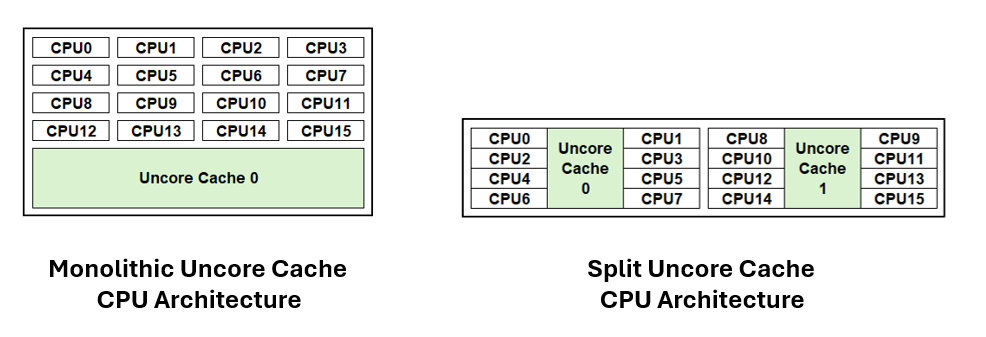

Traditional CPU architectures commonoly employ a monolithic uncore cache design where all CPU cores share equal access to a unified uncore cache. To address scalability challenges, CPU architectures are adopting a modular design. One such example is the split uncore cache architecture, where subsets of CPU cores are grouped with dedicated uncore caches, and these modular units are interconnected to form the complete processor.

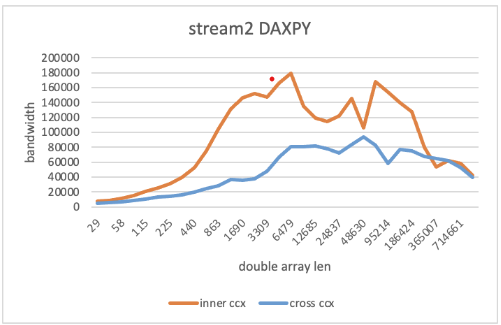

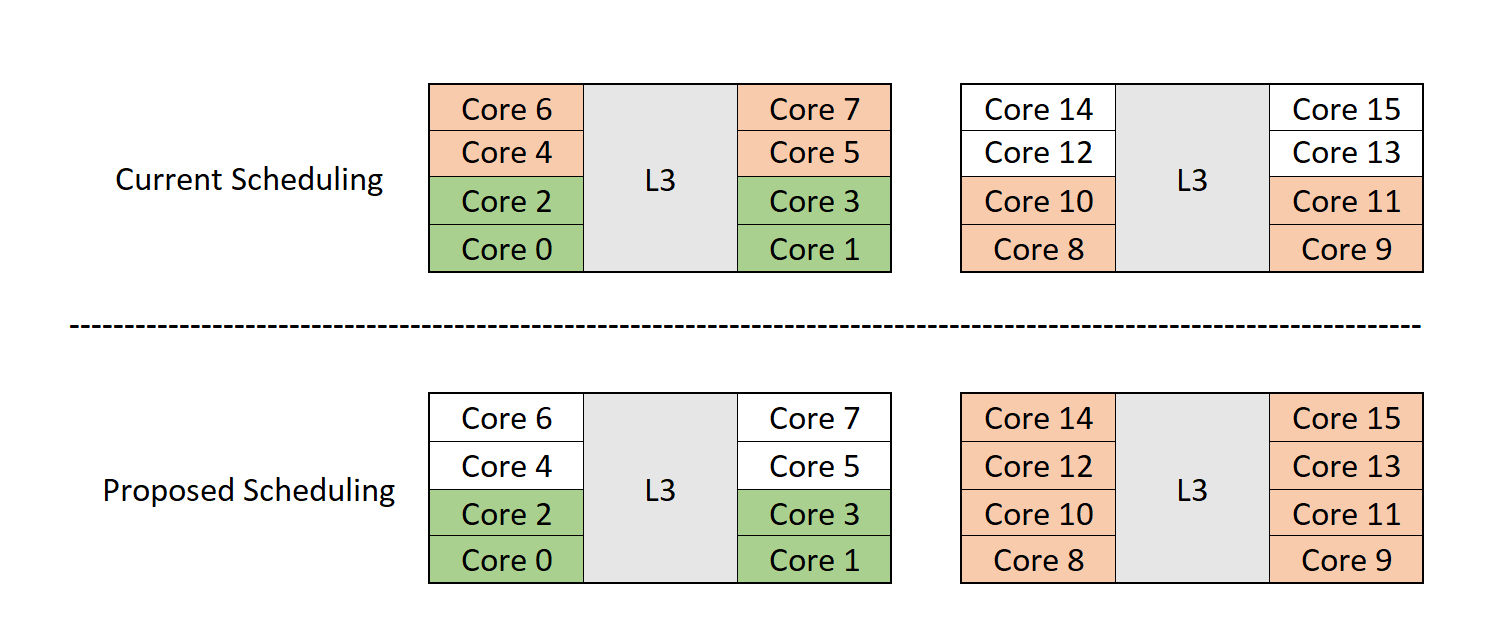

The primary goal of this proposal is to integrate the split uncore cache architecture into the static CPU Manager to enhance container resource allocation by mitigating noisy neighbor issues and intercross-cache latency. This optimization is particularly relevant for systems featuring a split uncore cache, which is supported on both x86 and ARM architectures. The challenge with the current Kubelet’s CPU Manager is that it is unaware of split uncore cache architecture and can distribute CPU assignments across multiple uncore caches. This creates a noisy neighbor problem where multiple pods/containers are sharing and competing for access to the same uncore cache. In addition, containers spread across multiple uncore caches can see higher latency and reduced performance due to inter-cache access where a CPU will need to access an undedicated uncore cache. For workload use cases that are sensitive to cache latency and are performance deterministic, minimizing the uncore cache spread can have significant improvements in performance.

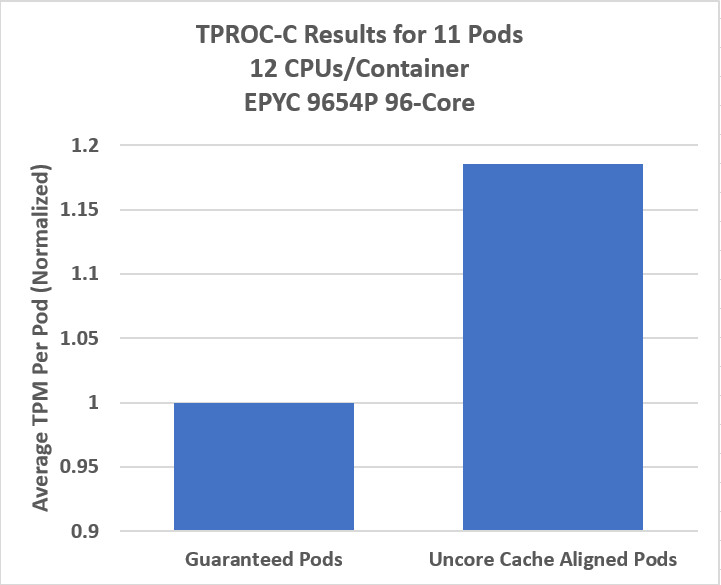

The figure below highlights performance gain when container placement is aligned to an uncore cache group. In this example HammerDB TPROC-C/My-SQL is the workload deployed. There was a 18% uplift in performance when uncore cache aligned compared to default behavior. Other workloads may see higher or lower gains based on uncore cache utilization.

Goals

• Introduce a new CPU Manager policy option that attempts to assign CPUs within the same uncore cache group to a container.
• Minimize the number of CPUs assignments from different uncore cache groups to containers.

Non-Goals

• This proposal does not aim to modify CPU assignments for CPU Manager policy set to none.
• This does not alter the behavior of existing static policy options such as full-pcpus-only.

Proposal

• Introduce a new static policy option to optimize CPU assignments by prioritizing alignment with uncore cache groupings. The prefer-align-cpus-by-uncorecache option, enabled on an opt-in basis, attempts to allocate CPUs to each container in a way that minimizes the number of uncore caches used, if possible.

• Add a new member called uncorecacheId into the CPUInfo struct that tracks whether the CPU is part of a split uncore cache. Topology struct already contains CPUDetails which is a map of CPUInfo. CPUInfo knows about NUMA, socket, and core IDs associated with a CPU. Functionality to support this was merged in cadvisor with these pull-requests cadvisor/pr-2849 and cadvisor/pr-2847

• Handle enablement of the policy option in pkg/kubelet/cm/cpumanager/policy_options.go and check the validity of the user flag and capability of the system. If the node CPU topology does not support split uncore caches, enabling this feature will not impact on the default CPU allocation behavior.

• For platforms where SMT is enabled, prefer-align-cpus-by-uncorecache can be enabled along with full-pcpus-only and enforce full core assignment with uncore cache alignment.

User Stories (Optional)

Story 1

• As a HPC user, I want to extract the best performance possible and reduce latency, so that I can extract the most value when deploying applications in Kubernetes. I can use the static CPU Manager Policy option, but on split uncore cache processors, my application can experience latency when assigned CPUs across multiple uncore caches. In order to maximize performance, I want to minimize the distribution across uncore caches to minimize the latency. I want a feature I can enable so the CPU allocation logic inside the kubelet will automatically handle this for me for larger clusters for simple deployment and efficiency.

Story 2

• As a Networking/Telco Engineer, my application is latency sensitive, to which uncore cache misalignment is a contributing factor. I want my application to be statically assigned to CPUs that correspond to one single uncore cache so that I can get the maximum throughput from my application. Additionally, I have applications that are also static and of different CPU size requirements. The default Static CPU Manager Policy will result in my applications being assigned to two or more uncore caches. I have a large multi-node Kuberentes cluster. I want a cpu allocation logic to automatically assign CPUs for the best performance across the fewest amount of uncore cahces based on available CPUs without having to worry about what order/size I deploy my applications so I can ensure I get the best performance possible.

Notes/Constraints/Caveats (Optional)

• The name UncoreCache is directly derived from cAdvisor that is being used as a package.
• Using the flow in CPUManagerPolicy{Alpha,Beta}Options from xref which is used to avoid proliferation of feature gates.

Risks and Mitigations

• Risk: Enabling or disabling the feature might lead to unexpected behavior
  • Mitigation: Feature is enabled by a static policy option flag
• Risk: The new feature might interfere with existing functionality
  • Mitigation: It does not change behavior of non-static policy and preserves the behavior of other static options
• Risk: Inconsistent configuration could cause allocation issues
  • Mitigation: Failure will occur during runtime if mismatch between options occurs, preventing the Pod from being allocated incorrectly or leading a non-optimal aligment

Design Details

We propose to:

• make the CPUManager aware of the uncore cache architecture.
• add a new static CPUManager option called prefer-align-cpus-by-uncorecache that affines CPU resources to a container while minimizing the uncore cache distribution at a best-effort policy.

To make Kubelet be uncore cache aware for CPU sensitive workloads, the CPU allocation, UncoreCacheID has been added to the CPUInfo and CPUTopology structures that are provided by cAdvisorapi.MachineInfo during the CPU discovery process.

A new Static CPUManager Policy option, prefer-align-cpus-by-uncorecache, will be introduced to enable the proposed feature. When enabled, the algorithm for prefer-align-cpus-by-uncorecache will be implemented to follow the default packed behavior of the existing static CPU Manager allocation with the introduction of a uncore cache hierarchy. Each Guaranteed container allocated resources with the Static CPU Manager Policy will have a defined total CPU requirement. Based on this requirement, CPUs will be allocated from whole CPU Domains, which consist of CPUs sharing a common characteristic such as socket, memory locality (NUMA), uncore caches, or cores. CPU allocations will prioritize larger domains first for optimal resource distribution.

The CPU allocation algorithm is as follows:

• If the number of CPUs required for the container is equal to or larger than a total NUMA/Socket’s-worth of CPUs (depending on which is larger in the hierarchy), allocate whole NUMA/Socket’s worth of CPUs (takeFullFirstLevel). Deduct the amount of CPU allocated from the required number of total CPUs. Continue allocating CPUs by this CPU Domain until the required number of total CPUs is satisfied or less than the current CPU Domain.

• If the remaining CPUs required or original required total number of CPUs for the container is equal to or larger than a total NUMA/Socket’s worth of CPUs (depending on which is smaller in the hierarchy), allocate whole NUMA/Socket’s worth of CPUs (takeFullSecondLevel). Deduct the amount of CPUs allocated from the required number of total CPUs. Continue allocating CPUs by this CPU Domain until the required number of total CPUs is satisfied or less than the current CPU Domain.

• NOTE: If the container’s CPU requirement is large enough to trigger takeFullFirstLevel or takeFullSecondLevel, the CPU allocation will extend across multiple uncore caches on a split uncore cache processor, undermining the effectiveness of this optimization. The performance benefit of this feature depends on the workload’s cache sensitivity and CPU requirements, with greater optimzation potential when fewer uncore caches are utilized. Since this feature is implemented at a best-effort policy, containers with larger CPU requirements can still be deployed. This is intentional to allow mixed-use static workloads on the node (larger non-cache sensitive containers with smaller cache sensitive containers) and prevents CPU size restrictions for Guaranteed containers. For specific circumstances where the container CPU requirement is large enough to employ takeFullFirstLevel or takeFullSecondLevel yet still requires a subset of CPUs affined to an uncore cache, the application will be required to recognize the allocated CPUset and pin the necessary CPUs.

• Added feature: If prefer-align-cpus-by-uncorecache is enabled, use the takeUncoreCache method. This feature will be introduced at this level of the CPU topology hierarchy because split-uncore-caches will be smaller CPU domains than sockets since multiple uncore caches are interconnected on a socket. General use cases will also often set the NUMA Per Socket (NPS) equal to 1, meaning the NUMA will be the same size as the socket, resulting in the uncore cache CPU domain being smaller than the NUMA CPU domain. However, it is possible to set NPS=2, NPS=4, and even as high as Last-Level-Cache as NUMA (meaning each uncore cache domain is an individual NUMA). These particular settings are less common and will still result in the NUMA CPU domain being larger than or equal to an uncore cache CPU domain on split-uncore-cache processors. Additionally, setting Last-Level-Cache as NUMA is not recommended with Kubernetes as many split-uncore-cache processors will then exceed the current limitation of 8 NUMA domains in Kubernetes (as of current implementation writing in v1.32). The uncore cache CPU domain is generally considered smaller than the NUMA or Socket CPU domain. However, the proposed algorithm is designed to also handle cases where the uncore cache domain contains the same CPUs as the Socket or NUMA domain, or even scenarios where it spans more CPUs than a NUMA domain. Details of this handling and the overall implementation are described further below.

  • Scan through every uncore cache index in numerical order, for each uncore cache block:

    • First, check if the current required total number of CPUs for the container is greater than or equal the size of the total amount of CPUs to an uncore cache, assign the full uncore cache CPUs if they are all unallocated within the group. Subtract the amount of assigned CPUs from the quantity of required CPUs. This submethod will be called takeFullUncore and follows the same allocation principle as takeFullFirstLevel and takeFullSecondLevel where CPU allocations will be done based on the domain-level. Repeat takeFullUncore until the required number of total CPUs is satisfied or less than the amount of CPUs available on an uncore cache.

    • Once the current required total number of CPUs for the container is less than the size of the total amount of CPUs to an uncore cache, determine if all required CPUs can fit within the uncore cache domain. Allocate the CPUs if the container’s required CPUs can be satisfied from the unallocated CPUs within the single uncore cache domain. This submethod will be called takePartialUncore. The goal of takePartialUncore is to perform a first-fit method where as the uncore caches are scanned, CPUs will be allocated once it is determined there are enough allocatable CPUs within the uncore cache to satisfy the CPU requirement.

    • takePartialUncore diverges from the allocation principles previously used where full CPU domains are allocated at a time. This is necessary since this is a best-effort implementation intended to balance maximizing node performance while minimizing uncore cache distribution. Uncore cache sensitive applications can be deployed on the edge where lower core count systems are utilized. These applications often require less CPUs than the total number of CPUs of an uncore cache domain. Newer split architecture processors have increased uncore cache size and bandwidth which has helped reduced the noisy neighbor problem. However, the workloads can still be sensitive to cross-cache latency. The example below helps illustrate why takePartialUncore is important to fully maximize nodes that have less uncore caches available. For the example below, a 16-core split uncore cache processor is allocated to the following Guaranteed containers using the static policy with prefer-align-cpus-by-uncorecache enabled and disabled.

      • Reserved CPUs: 0-1
      • Allocatable CPUs: 2-15
      • Container 1: 4 CPUs
      • Container 2: 4 CPUs
      • Container 3: 4 CPUs

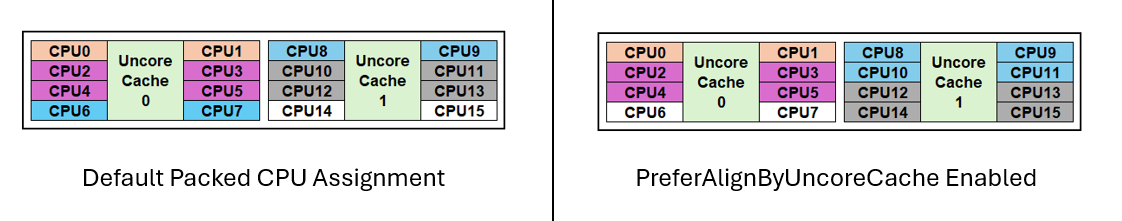

      In the depiction above, Container 2 will suffer from cross cache latency using the default packed CPU allocation despite having enough room to fit on Uncore Cache 1. With prefer-align-cpus-by-uncorecache, the available CPUs on the node can be maximized and run as optimally as possible using the takePartialUncore method.

  • takeUncoreCache and takePartialUncore will still follow a “packed” allocation principle as the rest of the implementation. Uncore Cache IDs will be scanned in numerical order and assigned as possible. For takePartialUncore, CPUs will be assigned within the uncore cache in numerical order to follow a “packed” methodology.
  • In the case where the uncore cache CPU domain is similar to the socket CPU domain (ex: monolithic cache architectures), takeFullFirstLevel and takeFullSecondLevel will have already reduced the required number of CPUs to be less than a socket’s worth of CPUs (or the original requirement was less than a socket’s worth of CPUs). In this case, takeFullUncore is skipped since the CPU requirement is already less than the the total CPUs to a monolithic cache. takePartialUncore will then allocate CPUs in numerical order as available on the socket CPU domain (which is equivalent to the monolithic uncore cache CPU domain) and results in the same allocation as the default behavior without prefer-align-cpus-by-uncorecache enabled.
  • In the case where the NUMA CPU domain is smaller than the uncore cache CPU domain (ex: enabling sub-NUMA clustering on monolithic cache architectures), takeFullFirstLevel and takeFullSecondLevel will have already reduced the required number of CPUs to be less than a socket’s worth of CPUs (or the original requirement was less than a socket’s worth of CPUs). In this case, takeFullUncore is skipped since the CPU requirement is already less than the the total CPUs to a monolithic cache. takePartialUncore will then allocate CPUs in numerical order as available on the node and results in the same allocation as the default behavior without prefer-align-cpus-by-uncorecache enabled.
  • In the case where the NUMA CPU domain is equal to the uncore cache CPU domain (ex: setting Last-Level-Cache as NUMA on split-uncore-cache architectures), takeFullSecondLevel will satisfy the requirements for takeFullUncore, which results in the use of takePartialUncore. takePartialUncore will then minimize the distribution of CPUs across multiple uncore caches as seen in the example above.
  • Although takePartialUncore diverges from the allocation by domain principle, it is necessary to enable greater utilization of the node by reducing uncore cache distribution and achieves the goal for a best-effort policy. If takeFullUncore was only implemented, containers with CPU requirements that are less than an uncore cache’s worth would follow the default packed method and not always be uncore cache aligned. The only containers that would benefit would be those with CPU requirements that exactly match the size of the uncore cache CPU domain. This would be restrictive for the users who have different sized applications, and could result in overallocating resources and inefficient usage of the node.

• Continuing the allocation algorithm, if the required amount of CPUs cannot fit within an uncore cache group and there are enough allocatable cores on the node, assign cores in numerical order as available (takeFullCores).

• If the CPU requirement is still not satisfied but there are enough CPUs available, assign CPUs in numerical order as available (takeRemainingCPUs).

In order to fully depict the CPU allocation implementation, the following shows CPU assignments for the default packed method vs prefer-align-cpus-by-uncorecache. The following containers are scheduled on the a 32 core split uncore cache processor:

• Single Socket
• NPS=1
• 4 Uncore Caches
• Reserved CPUs: 0-1
• Allocatable CPUs: 2-31
• Container 1: 10 CPUs (larger than an uncore cache CPU domain)
• Container 2: 8 CPUs (equivalent to an uncore cache CPU domain)
• Container 3: 6 CPUs (smaller than an uncore cache CPU domain)

In this example, takeFullFirstLevel and takeFullSecondLevel will be skipped for all three containers since the CPU requirement is less than a Socket and NUMA’s worth of CPUs.

• The first container requires 10 CPUs which is greater than the CPUs in an uncore cache, takeFullUncore is utilized. The function will iterate through each uncore cache in numerical order. Uncore Cache 0 is not allocated since a full uncore cannot be allocated. Uncore cache 1 is then fully allocated to container 1 but still requires 2 more CPUs. Uncore cache 2 is then scanned. Since the CPU requirement is less than a uncore cache’s worth of CPUs, takePartialUncore is utilized. Since Uncore Cache 2 is able to satify the 2 remaining required CPUs by container 1, the CPUs are allocated in numerical order on Uncore Cache 2 to satisfy the requirement.
• Container 2 requires 8 CPUs which is equal to the node’s uncore cache worth of CPUs. takeFullUncore is utilized again. Scanning each uncore cache in numerical order results in finding that Uncore Cache 3 is the only uncore cache fully available, and therefore allocated to container 2 to satisfy the requirement.
• Container 3 requires 6 CPUs which is less than the CPUs in an uncore cache. takeFullUncore is skipped and takePartialUncore is utilized. Scanning each uncore cache in numerical order results in Uncore Cache 0 being able to fit the CPU requirements within a single uncore. The remaining 6 available CPUs on Uncore Cache 0 are allocated to container 3 to satisfy the requirement.

This example shows the benefit of the prefer-align-by-uncorecache feature in comparison to the default packed allocation. In the default packed allocation where CPUs are assigned numerically as available, all three containers suffer cross cache latency where CPUs need to access uncore caches from other slices and suffer from the noisy neighbor effect. The uncore cache aligned containers do not suffer from cross cache latency (unless the CPU requirement is larger than an uncore cache domain) and does not face a noisy neighbor scenario.

In the case where the NUMA boundary is larger than a socket (setting NPS0 on a dual-socket system), the full node’s CPUs will be allocated to the container if it requires the total NUMA amount of CPUs. Otherwise, if the CPU requirement for the container is less than the total CPUs to the NUMA, the logic will begin with (takeFullSecondLevel). The node can not be over committed.

This CPU allocation policy will minimize the distribution of containers across uncore caches to improve performance while still maintaining the default packed logic. The scope will be initially be narrowed to implement uncore cache alignment to the default NUMA packed static CPU allocation behavior. This feature will not be compatible with the distribute-cpus-across-numa CPU policy option. Distributing CPU allocations evenly across NUMAs for containers requiring more resources than a single NUMA can undermine the objective of minimizing CPU latency across uncore caches. As a result, more uncore cache allocations are distributed across NUMAs, and the cross cache latencies are compounded with cross NUMA latencies. This feature will also not be compatible with the distribute-cpus-across-cores CPU policy option since this option currently has compatibility conflicts with the full-pcpus-only CPU policy option.

This feature follows a best-effort policy rather than a strict policy. A strict policy would prevent Guaranteed containers from being deployed if they exceed the size of an uncore cache CPU domain while a best-effort policy will still permit containers larger than an uncore cache CPU domain to be deployed. Additionally, under a strict policy, each container would be assigned its own dedicated uncore cache, which would limit the node to deploying a number of containers equal to the number of uncore caches available. A strict uncore cache alignment policy is not within the scope of this implementation. Execution of a strict uncore cache alignment policy will be pursued in a separate KEP.

As this feature operates on a best-effort basis and does not prevent CPU allocation to containers that cannot be restricted to a single uncore cache, a metric will be need to be provided to help users determine whether a container is uncore cache aligned.

Test Plan

[x] I/we understand the owners of the involved components may require updates to existing tests to make this code solid enough prior to committing the changes necessary to implement this enhancement.

Prerequisite testing updates

Unit tests

We plan on adding/modifying functions to the following files to create the uncorecache alignment feature:

• pkg/kubelet/cm/cpumanager/cpu_assignment.go
• /pkg/kubelet/cm/cpumanager/cpu_manager.go
• /pkg/kubelet/cm/cpumanager/policy_options.go
• /pkg/kubelet/cm/cpumanager/topology/topology.go

Existing topoology test cases will be modified to include uncorecache topology. All modified and added functions will have new test cases.

• /pkg/kubelet/cm/cpumanager/cpu_assignment.go: 2024-08-26 - 93.5%
• /pkg/kubelet/cm/cpumanager/cpu_manager.go: 2024-08-26 - 74.5%
• /pkg/kubelet/cm/cpumanager/policy_static.go: 2024-08-26 - 89.5%
• /pkg/kubelet/cm/cpumanager/topology/topology.go: 2024-9-30 - 93.2%

Unit tests will be created to test the proposed feature’s functionality starting from the static policy’s Allocate method. The unit tests will show that containers are assigned CPUs from an individual uncore cache.

The prefer-align-cpus-by-uncorecache feature will be enabled and tested individually. The following features will also be enabled alongside to test the proposed feature’s compatibility with existing static CPU Manager policies:

• full-pcpus-only
• Topology Manager NUMA Affinity

The following CPU Topologies are representative of various uncore cache architectures and will be added to policy_test.go and represented in the unit testing.

• 1P AMD EPYC 7702P 64C (smt-on/off) NPS=1, 16 uncore cache instances/socket
• 2P AMD EPYC 7303 32C (smt-on/off) NPS=1, 4 uncore cache instances/socket
• 1P AMD EPYC 9754 128C (smt-on) NPS=1, 16 uncore cache instances/socket
• 2P AMD EPYC 9654 96C (smt-off) NPS=2, 12 uncore cache instances/socket
• 2P Intel Xeon Platinum 8490H 60c (hyperthreading on) with Sub-NUMA Clustering
• 1P Intel Core i7-12850HX
• 1P ARM Ampere Altra 128c, 16 uncore cache instances/socket
• 1P AWS Graviton3 64c

Integration tests

N/A. This feature requires a e2e test for testing.

e2e tests

• should update alignment counters when pod successfully run taking less than uncore cache group :SIG-node :SIG-node-kubelet
• should update alignment counters when pod successfully run taking a full uncore cache group :SIG-node :SIG-node-kubelet
• should not update alignment counters when pod successfully run taking more than a uncore cache group :SIG-node :SIG-node-kubelet

Graduation Criteria

Alpha

• Feature implemented behind a feature gate flag option
• Add unit test coverage
• Added metrics to cover observability needs
• Added e2e tests for metrics

Beta

• Address bug fixes: ability to schedule odd-integer CPUs for uncore cache alignment
• Add test cases to ensure functional compatibility with existing CPUManager options
• Add test cases to ensure and report incompatibility with existing CPUManager options that are not supported with prefer-align-cpus-by-uncore-cache
• Add E2E test coverage for feature

Stable

• No changes to implementation
• Test criteria met at beta stage

Upgrade / Downgrade Strategy

prefer-align-by-uncorecache was introduced as an alpha and beta CPUManager policy option prior to its stable graduation. The table below summarizes the additional feature gates needed to enable based on Kubelet versions.

Version Skew Strategy

Because CPUManager configuration is validated at Kubelet startup, any version skew involving an unsupported Kubelet for the feature will result in a Kubelet initialization failure. Kubelet versions earlier than v1.32 do not support this option. Providing it will cause a configuration parsing error and the Kubelet will fail to start.

Production Readiness Review Questionnaire

Feature Enablement and Rollback

To enable this feature requires enabling the feature gates for static policy in the Kubelet configuration file for the CPUManager feature gate and add the policy option for uncore cache alignment

How can this feature be enabled / disabled in a live cluster?

For CPUManager it is a requirement going from none to static policy cannot be done dynamically because of the cpu_manager_state file. The node needs to be drained and the policy checkpoint file (cpu_manager_state) need to be removed before restarting Kubelet. This feature specifically relies on the static policy being enabled.

• Feature gate (also fill in values in kep.yaml)
  • Feature gate name: “CPUManagerPolicyOptions”, “CPUManagerPolicyBetaOptions”, “CPUManagerPolicyAlphaOptions”
  • Components depending on the feature gate: kubelet
• Other
  • Describe the mechanism: Change the kubelet configuration to set a CPUManager policy of static then setting the policy option of prefer-align-cpus-by-uncorecache
  • Will enabling / disabling the feature require downtime of the control plane? No.
  • Will enabling / disabling the feature require downtime or reprovisioning of a node? Yes, a kubelet restart is required for changes to take place.

Does enabling the feature change any default behavior?

To enable this feature, it must be explicitly set in the CPUManager static policy and the policy option prefer-align-cpus-by-uncorecache must be set. The static default behavior will change from a packed CPU method to best-effort alignment to the CPUs of uncore caches as outlined above. For nodes with monolithic uncore caches, the static default behavior will be the same.

Can the feature be disabled once it has been enabled (i.e. can we roll back the enablement)?

Yes this feature can be disabled it will just require a restart of kubelet. The Kubelet configuration will need to be set with the static policy option and prefer-align-cpus-by-uncorecache flag removed. Remove the cpu_manager_state file if disabling the static policy.

What happens if we reenable the feature if it was previously rolled back?

Feature will be enabled. Proper drain of node and restart of kubelet required. Feature is not intended to be enabled/disabled dynamically, similar to static policy.

Are there any tests for feature enablement/disablement?

E2E test will demonstrate default behavior is preserved when CPUManagerPolicyOptions feature gate is disabled. Metric created to check uncore cache alignment after cpuset is determined and utilized in E2E tests with feature enabled. See cpu_manager_metrics_test.go

Rollout, Upgrade and Rollback Planning

How can a rollout or rollback fail? Can it impact already running workloads?

This feature is a best-effort alignment of CPUs to uncore caches that requires a kubelet restart that must not affect running workloads. No changes needed to cpu_manager_state file. A rollout may fail based upon existing workloads that create fragmented uncore caches on the node, potentially resulting in CPUset distribution across multiple caches based upon the CPU quantity requirements and the best-effort policy. Metrics below can help the user track alignment, but a rollback will not help because the feature is not a strict alignment to uncore caches, but a best-effort to reduce shared uncore caches.

What specific metrics should inform a rollback?

kubelet_container_aligned_compute_resources_count and container_aligned_compute_resources_failure_count metric can be tracked to measure if there are issues in the cpuset allocation that can determine if a rollback is necessary.

Were upgrade and rollback tested? Was the upgrade->downgrade->upgrade path tested?

N/A, because way to upgrade and rollback would be the same process of removing the CPU Manager state file and drain the node of pods then restarting kubelet.

Is the rollout accompanied by any deprecations and/or removals of features, APIs, fields of API types, flags, etc.?

No

Monitoring Requirements

Reference CPUID info in podresources API to be able to verify assignment.

How can an operator determine if the feature is in use by workloads?

Reference podresources API to determine CPU assignment and CacheID assignment per container. Use ‘container_aligned_compute_resources_count’ metric which reports the count of containers getting aligned compute resources. See kubelet/metrics/metrics.go .

How can someone using this feature know that it is working for their instance?

Reference podresources API to determine CPU assignment.

• Other
  • Metric: container_aligned_compute_resource_count
  • Other field: CPUID from podresources API

What are the reasonable SLOs (Service Level Objectives) for the enhancement?

This feature is best-effort and will not cause failed admission, but can introduce negligible admission delay. CPU and corresponding uncore cache topology is built once at initialization. This is a one-time cost that does not impact Pod admission. This policy option stays at O(N) complexity since it scans through each uncore cache ID to find a CPU fit. Any admission delay is estimated to be negligible at sub-millisecond.

What are the SLIs (Service Level Indicators) an operator can use to determine the health of the service?

• Metrics
  • topology_manager_admission_duration_ms can be used to determine pod admission time

Are there any missing metrics that would be useful to have to improve observability of this feature?

No.

Dependencies

Does this feature depend on any specific services running in the cluster?

No

Scalability

Will enabling / using this feature result in any new API calls?

All of the housekeeping for this feature is node internal, and thus will not require the kubelet request anything new of the apiserver

Will enabling / using this feature result in introducing new API types?

No

Will enabling / using this feature result in any new calls to the cloud provider?

N/A

Will enabling / using this feature result in increasing size or count of the existing API objects?

No

Will enabling / using this feature result in increasing time taken by any operations covered by existing SLIs/SLOs?

Pod startup time can directly affected because CPUManager will have to do a few extra steps when scheduling a Pod. This extra steps would be negligible as all the computation is done on RAM.

Will enabling / using this feature result in non-negligible increase of resource usage (CPU, RAM, disk, IO, …) in any components?

No

Can enabling / using this feature result in resource exhaustion of some node resources (PIDs, sockets, inodes, etc.)?

No

Troubleshooting

How does this feature react if the API server and/or etcd is unavailable?

There is no known consequence since this component is dedicated for CPU allocation for Pods which does not directly interact with any API server.

What are other known failure modes?

• Feature is best effort, resulting in potential for non-optimal uncore cache alignment when node is highly utilized.
  • Detection: Reference proposed metric in podresource API
  • Mitigation: Feature is preferred/best-effort
  • Diagnostics: Reference podresource API
  • Testing for failure mode not required as alignment is preferred and not a requirement

What steps should be taken if SLOs are not being met to determine the problem?

Time each step/function performed to determine CPU allocation when feature is enabled to assess what needs to be optimized.

Implementation History

• The outlined sections were filled out was created 2024-08-27.

• 2025-06-09: Submitted PR to promote feature to beta

• 2026-01-28: Promote feature to GA for v1.36

Drawbacks

N/A

Alternatives

Uncore cache affinity CPU allocation is possible by delgating CPU allocation from the Kubelet to the container runtime and plugins. However as a consequence of using a different implementation, the topology alignment granted by the Topology Manager within the kubelet is not compatible. Existing Static CPU Manager can be used, but requires manual assignment and for user to only run guaranteed pods with CPU sizes matching the corresponding uncore cache CPU group of the specific node.

Infrastructure Needed (Optional)

To be able to do e2e testing it would be required that CI machines with CPUs with Split L3 Cache (UncoreCache) exist to be able to use this static policy option properly.
