KEP-4603: Tune Crashloop Backoff

Implementation History
ALPHA Implementable
Created 2024-04-29
Latest v1.33
Milestones
Alpha v1.32
Related Enhancements
Ownership
Owning SIG
SIG Node
Primary Authors
@lauralorenz

KEP-4603: Tune CrashLoopBackoff

Release Signoff Checklist

Items marked with (R) are required prior to targeting to a milestone / release.

  • (R) Enhancement issue in release milestone, which links to KEP dir in kubernetes/enhancements (not the initial KEP PR)
  • (R) KEP approvers have approved the KEP status as implementable
  • (R) Design details are appropriately documented
  • (R) Test plan is in place, giving consideration to SIG Architecture and SIG Testing input (including test refactors)
    • e2e Tests for all Beta API Operations (endpoints)
    • (R) Ensure GA e2e tests meet requirements for Conformance Tests
    • (R) Minimum Two Week Window for GA e2e tests to prove flake free
  • (R) Graduation criteria is in place
  • (R) Production readiness review completed
  • (R) Production readiness review approved
  • “Implementation History” section is up-to-date for milestone
  • User-facing documentation has been created in kubernetes/website , for publication to kubernetes.io
  • Supporting documentation—e.g., additional design documents, links to mailing list discussions/SIG meetings, relevant PRs/issues, release notes

Summary

CrashLoopBackoff is designed to slow the speed at which failing containers restart, preventing the starvation of kubelet by a misbehaving container. Currently it is a subjectively conservative, fixed behavior regardless of container failure type: when a Pod has a restart policy besides Never, after containers in a Pod exit, the kubelet restarts them with an exponential back-off delay (10s, 20s, 40s, …), that is capped at five minutes. The delay for restarts will stay at 5 minutes until a container has executed for 2x the maximum backoff – that is, 10 minutes – without any problems, in which case the kubelet resets the backoff count for that container and further crash loops start again at the beginning of the delay curve (ref .

Both the decay to 5 minute back-off delay, and the 10 minute recovery threshold, are considered too conservative, especially in cases where the exit code was 0 (Success) and the pod is transitioned into a “Completed” state or the expected length of the pod run is less than 10 minutes.

This KEP proposes the following change:

  • Provide an alpha-gated change to get feedback and periodic scalability tests on changes to the global initial backoff to 1s and maximum backoff to 1 minute

A graph showing the change in elapsed time for observed restarts with the\nCrashLoopBackOffBehavior of today, with the proposed new default, and with the\nproposed minimum per node configuration

Originally, this KEP included a proposal to lower the maximum CrashLoopBackOff duration. This has been split into KEP-5593: Configure the max CrashLoopBackOff delay .

Motivation

Kubernetes#57291 , with over 250 positive reactions and in the top five upvoted issues in k/k, covers a range of suggestions to change the rate of decay for the backoff delay or the criteria to restart the backoff counter, in some cases requesting to make this behavior tunable per node, per container, and/or per exit code. Anecdotally, there are use cases representative of some of Kubernetes’ most rapidly growing workload types like gaming and AI/ML that would benefit from this behavior being different for varying types of containers. Application-based workarounds using init containers or startup wrapper scripts, or custom operators like kube_remediator and descheduler are used by the community to anticipate crashloopbackoff behavior, prune pods with nonzero backoff counters, or otherwise “pretend” the pod did not exit recently to force a faster restart from kubelet. Discussions with early Kubernetes contributors indicate that the current behavior was not designed beyond the motivation to throttle misbehaving containers, and is open to reintepretation in light of user experiences, empirical evidence, and emerging workloads.

By definition this KEP will cause pods to restart faster and more often than the current status quo; let it be known that such a change is desired. It is also the intention of the author that, to some degree, this change happens without the need to reconfigure workloads or expose extensive API surfaces, as experience shows that makes changes difficult to adopt, increases the risk for misconfiguration, and can make the system overly complex to reason about. That being said, this KEP recognizes the need of backoff times to protect node stability, avoiding too big of sweeping changes to backoff behavior, or setting unreasonable or unpredictable defaults. Therefore the approach manages the risk of different decay curves to node stability by providing an API surface to opt-in to the riskiest option, and ultimately also provides the observability instrumentation needed by cluster operators to model the impact of this change on their existing deployments.

A large number of alternatives have been discussed over the 5+ years the canonical tracking issue has been open, some of which imply high levels of sophistication for kubelet to make different decisions based on system state, workload specific factors, or by detecting anomalous workload behavior. While this KEP does not rule out those directions in the future, the proposal herein focuses on the simpler, easily modeled changes that are designed to address the most common issues observed today. It is the desire of the author that the observability and benchmarking improvements instrumented as part of this proposal can serve as a basis for pursuing those types of improvements in the future, including as signals for end users to represent such solutions as necessary. Some analysis of these alternatives are included in the Alternatives Considered section below for future reference.

Goals

  • Improve pod restart backoff logic to better match the actual load it creates and meet emerging use cases
  • Quantify and expose risks to node stability resulting from decreased and/or hetereogeneous backoff configurations
  • Empirically derive defaults and allowable thresholds that approximate current node stability
  • Provide a simple UX that does not require changes for the majority of workloads
  • Must work for Jobs and sidecar containers

Non-Goals

  • This effort is NOT intending to support fully user-specified configuration, to cap risk to node stability
  • This effort is purposefully NOT implementing more complex heuristics by kubelet (e.g. system state, workload specific factors, or by detecting anomalous workload behavior) to focus on better benchmarking and observability and address common use cases with easily modelled changes first
  • This effort is NOT changing the independent backoff curve for image pulls

Proposal

This design seeks to change the existing initial value for the backoff curve to 1s to stack more retries earlier, and reduce the maximum backoff for a given restart from 5 minutes to 1 minute, for all restarts (restartPolicy: OnFailure and restartPolicy: Always).

To derive these values, manual stress testing observing the behavior of kubelet, API server, and overall cluster operations and behavior were performed. In addition, part of the alpha period will be dedicated entirely to systematically stress testing kubelet and API Server with different distributions of workloads utilizing the new backoff curves. During the benchmarking period in alpha, kubelet memory and CPU, API server latency, and pod restart latency will be observed and analyzed to further refine the maximum allowable restart rate for fully saturated nodes.

Longer term, these metrics will also supply cluster operators the data necessary to better analyze and anticipate the change in load and node stability as a result of upgrading to these changes.

While they are more deeply rationalized in the Alternatives Considered section, because they are commonly inquired about at this point, note that this proposal will NOT change:

  • backoff behavior for Pods transitioning from the “Success” state differently from those transitioning from a “Failed” state – see here in Alternatives Considered
  • the ImagePullBackoff – out of scope, see Design Details
  • changes that address ’late recovery’, or modifications to backoff behavior once the maximum backoff has been reached – see Alternatives

Existing backoff curve change: front loaded decay, lower maximum backoff

This KEP proposes changing the existing backoff curve to load more restarts earlier by changing the initial value of the exponential backoff, and to retry periodically more often by reducing the maximum for the backoff. A number of alternate initial values and maximum backoff values are modelled below. This proposal suggests we start with a new initial value of 1s (changed from 10s today) and a maximum backoff of 1 minute (changed from 5 minutes today) based on prior research, and further analyze its impact on infrastructure during alpha.

A graph showing the change in elapsed time for observed restarts with the\nCrashLoopBackOffBehavior of today vs the proposed new\ndefault

Refactor and flat rate to 10 minutes for the backoff counter reset threshold

Finally, this KEP proposes factoring out the backoff counter reset threshold for CrashLoopBackoff behavior induced restarts into a new constant. Instead of being proportional to the configured maximum backoff, it will instead be a flat rate equivalent to the current implementation, 10 minutes. This will only apply to backoff counter resets from CrashLoopBackoff behavior.

User Stories

Task isolation

By design the container wants to exit so it will be recreated and restarted to start a new “session” or “task”. It may be a new gaming session or a new isolated task processing an item from the queue.

This is not possible to do by creating the wrapper of a container that will restart the process in a loop because those tasks or gaming sessions desire to start from scratch. In some cases - they may even want to download a new container image.

For these cases, it is important that the startup latency of the full rescheduling of a new pod is avoided.

Fast restart on failure

There are AI/ML scenarios where an entire workload is delayed if one of the Pods is not running. Some Pods in this scenario may fail with the recoverable error - for example some dependency failure or be killed by infrastructure (e.g. exec probe failures on containerd slow restart). In such cases, it is desirable to restart the container as fast as possible and not wait for 5 minutes of the max crashloop backoff timeout. With the existing max crashloop backoff timeout, a failure of a single pod in a highly-coupled workload can cause a cascade in the workload leading to an overall delay of (much) greater than the 5 minute backoff.

The typical pattern here today is to be quick to restart container, but with the intermittently failed dependency (e.g. network is down for some time, some intermittent issue with a GPU), this causes the container to fail repeatedly and the backoff timeout to eventually be reached. However when the dependency goes back to green, the container is not restarted immediately and has already reached the maximum crash loop backoff duration of 5 minutes.

Sidecar containers fast restart

There are cases when the Pod consists of a user container implementing business logic and a sidecar providing networking access (Istio), logging (opentelemetry collector), or orchestration features. In some cases sidecar containers are critical for the user container functioning as they provide a basic infrastructure for the user container to run in. In such cases it is considered beneficial to not apply the exponential backoff to the sidecar container restarts and keep it at a low constant value.

This is especially true for cases when the sidecar is killed by infrastructure (e.g. OOMKill) as it may have happened for reasons independent from the sidecar functionality.

Notes/Constraints/Caveats (Optional)

Risks and Mitigations

The biggest risk of this proposal is reducing the decay of the default CrashLoopBackoff: to do so too severely compromises node stability, risking the kubelet component to become too slow to respond and the pod lifecycle to increase in latency, or worse, causing entire nodes to crash if kubelet takes up too much CPU or memory. Since each phase transition for a Pod also has an accompanying API request, if the requests become rapid enough due to fast enough churn of Pods through CrashLoopBackoff phases, the central API server could become unresponsive, effectively taking down an entire cluster.

Some observations and analysis were made to quantify these risks going into alpha. In the Kubelet Overhead Analysis , the code paths all restarting pods go through result in 5 obvious /pods API server status updates; when observed empirically in an active cluster, while we do see an initial surges in /pods API traffic to the kubelet client side rate limit of ~5 QPS when deploying 110 mass crashing pods for our tests, even with instantly crashing pods and intantaneously restarting CrashLoopBackOff behavior, /pods API requests quickly normalized to ~2 QPS. In the same tests, runtime CPU usage increased by x10 and the API server CPU usage increased by 2x. «[UNRESOLVED non blocking]If you were testing this on a small cluster without a lot of additional load, the 2x increase in apiserver cpu usage is probably not a particularly useful metric. Might be worth mentioning the raw numbers here instead.» «[/UNRESOLVED]»

By passing the proposed changes through the existing SIG-scalability tests, while pursuing manual and more detailed periodic benchmarking during the alpha period, we can increase the confidence in the changes and explore the possibility of reducing the values further in the future.

In the meantime, during alpha, naturally the first line of defense is that the enhancement is not usable by default and must be opted into. Further mitigation is conservativism in changes to the default behavior based on prior stress testing.

The alpha changes to the default backoff curve were chosen because they meet emerging use cases and user sentiment from the canonical feature request issue and research by the author, AND because they are indicated to be safe changes based on initial benchmarking and analysis. The reduction of the initial value from 10s to 1s and the reduction of the backoff maximum from 5 minutes to 1 minute introduces

  • 5 excess restarts per pod in the first five minutes
    • the first 3 excess in the first 30 seconds
    • and the last 2 excess between 150 and 300 seconds
    • an excess 5 restarts every five minutes compared to today given the change in the backoff maximum

For a hypothetical node with the default maximum 110 pods all stuck in a simultaneous 10s CrashLoopBackoff, at its most efficient this would result in a new restart for each pod every second, and API requests to the API server to change the state transition would increase at its fastest period from ~550 requests/10s to ~5500 requests/10s, or 10x. In conjunction, the lowered backoff would continuously add 5 excess restarts every five minutes compared to today’s behavior, so each crashing pod would be adding an excess of 25 pod state transition API requests, for a total of 2750 excess API requests for a node fully saturated with crashing pods.

Design Details

Front loaded decay curve, modified maximum backoff methodology

As mentioned above, today the standard backoff curve is a 2x exponential decay starting at 10s and capping at 5 minutes, resulting in a composite of the standard hockey-stick exponential decay graph followed by a linear rise until the heat death of the universe as depicted below:

A graph showing the backoff decay for a Kubernetes pod in\nCrashLoopBackoff

Remember that the backoff counter is reset if containers run longer than 10 minutes, so in the worst case where a container always exits after 9:59:59, this means in the first 30 minute period, the container will restart twice. In a more easily digestible example used in models below, for a fast exiting container crashing every 10 seconds, in the first 30 minutes the container will restart about 10 times, with the first four restarts in the first 5 minutes.

Why change the initial value of the backoff curve instead of its rate, or why not change the decay function entirely to other well known equations (like functions resulting in curves that are lienar, parabolic, sinusoidal, etc)?

Exponential decay, particularly at a rate of 2x, is commonly used for software retry backoff as it has the nice properties of starting restarts at a low value, but penalizing repeated crashes harshly, to protect primarily against unrecoverable failures. In contrast, we can interpret linear curves as penalizing every failure the same, or parabolic and sinusoidal curves as giving our software a “second chance” and forgiving later failures more. For a default restart decay curve, where the cause of the restart cannot be known, 2x exponential decay still models the desired properties more, as the biggest risk is unrecoverable failures causing “runaway” containers to overload kubelet.

To determine the effect in abstract of changing the initial value on current behavior, we modeled the change in the starting value of the decay from 10s to 1s, 250ms, or even 25ms.

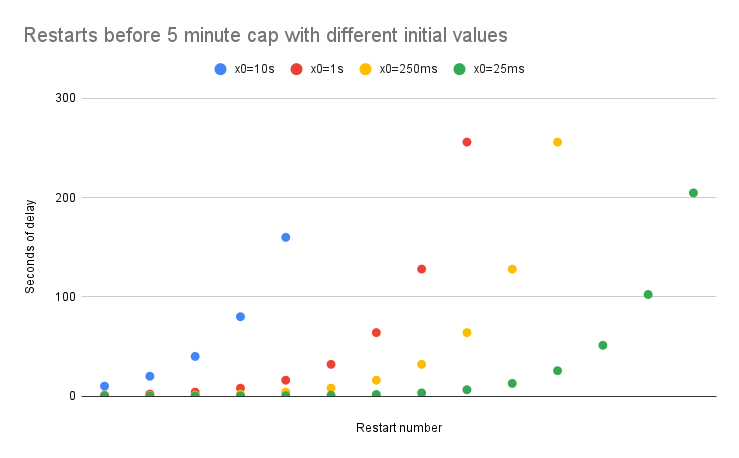

“A graph showing the decay curves for different initial values”

For today’s decay rate, the first restart is within the first 10s, the second within the first 30s, the third within the first 70s. Using those same time windows to compare alternate initial values, for example changing the initial rate to 1s, we would instead have 3 restarts in the first time window, 1 restart within the second time window, and two more restarts within the third time window. As seen below, this type of change gives us more restarts earlier, but even at 250ms or 25ms initial values, each approach a similar rate of restarts after the third time window.

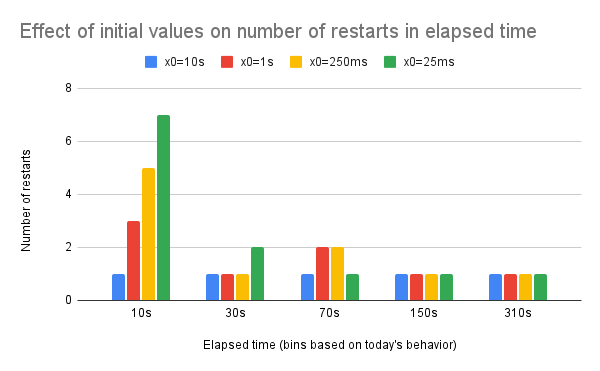

A graph showing different exponential backoff decays for initial values of\n10s, 1s, 250ms and 25ms

Among these modeled initial values, we would get between 3-7 excess restarts per backoff lifetime, mostly within the first three time windows matching today’s restart behavior.

The above modeled values converge like this because of the harshly increasing rate caused by the exponential growth, but also because they grow to the same maximum value – 5 minutes. By layering on alternate models for maximum backoff, we observe more restarts for longer:

A graph showing different exponential backoff decays for 2 initial values and\n2 different maximum backoff\nthresholds

While this graph includes several variations – initial values of 10s in red and pink, initial values of 1s in purple and lilac, and both of these initial values modeled either 60s or 30s maximum backoff – hopefully it can impress upon the reader how including a reduction to maximum backoff increases the number of excess restarts later in the cycle. In the most extreme case modeled above, with initial value of 1s and a maximum backoff of 30s, there are 2 excess restarts in the first time window, 1 excess in the second time window, 3 excess in the fourth time window and 4 excess in the fifth time window for a total of 10 excess restarts compared to today’s behavior.

As a first estimate for alpha in line with maximums discussed on Kubernetes#57291 , the initial curve is selected at initial=1s / max=1 minute. During the alpha period this will be further investigated against kubelet capacity, potentially targeting something closer to an initial value near 0s, and a cap of 10-30s. To further restrict the blast radius of this change before full and complete benchmarking is worked up, this is gated by its own feature gate, ReduceDefaultCrashLoopBackoffDecay.

Refactor of recovery threshold

A simple change to maximum backoff would naturally come with a modification of the backoff counter reset threshold – as it is currently calculated based on 2x the maximum backoff. Without any other modification, as a result of this KEP, default containers would be “rewarded” by having their backoff counter set back to 0 for running successfully for 2*1 minute=2 minutes (instead of for 2*5minutes=10 minutes like it is today); containers on nodes with an override could be rewarded for running successfully for as low as 2 seconds if they are configured with the minimum allowable backoff of 1s.

From a technical perspective, granularity of the associated worker polling loops governing restart behavior is between 1 and 10 seconds, so a reset value under 10 seconds is effectively meaningless (until and unless those loops increase in speed or we move to evented PLEG). From a user perspective, it does not seem that there is any particular end user value in artificially preserving the current 10 minute recovery threshold as part of this implementation, since it was an arbitrary value in the first place. However, since late recovery as a category of problem space is expressly a non-goal of this KEP, and in the interest of reducing the number of changed variables during the alpha period to better observe the ones previously enumerated, this proposal intends to maintain that 10 minute recovery threshold anyways.

Forecasting that the recovery threshold for CrashLoopBackOff may be better served by being configurable in the future, or at least separated in the code from all other uses of client_go.Backoff for whatever future enhancements address the late recovery problem space, the mechanism proposed here is to redefine client_go.Backoff to accept alternate functions for client_go.Backoff.hasExpired , and configure the client_go.Backoff object created for use by the kube runtime manager for container restart bacoff with a function that compares to a flat rate of 300 seconds.

Kubelet overhead analysis

As it’s intended that, after this KEP, pods will restart more often that in current Kubernetes, it’s important to understand what the kubelet does during pod restarts. The most informative code path for that is through (all links to 1.31) kubelet/kubelet.go SyncPod , kubelet/kuberuntime/kuberuntime_manager.go SyncPod , kubelet/kuberuntime/kuberuntime_container.go startContainer and kubelet/kubelet.go SyncTerminatingPod , kubelet/kuberuntime/kuberuntime_container.go killContainer , kubelet/kuberuntime/kuberuntime_manager.go killPodWithSyncResult , kubelet/kubelet.go SyncTerminatingPod , and kubelet/kubelet.go SyncTerminatedPod .

“A sequence diagram showing Kubelet and Container Runtime code paths\nresponsible for behaviors common to all pod\nrestarts”

As you might imagine this is a very critical code path with hooks to many in-flight features; Appendix A includes a more complete list (yet still not as exhaustive as the source code), but the following are selected as the most important behaviors of kubelet during a restart to know about, that are not currently behind a feature gate.

After a Pod is in Terminating phase, kubelet:

  • Clears up old containers using container runtime
  • Stops probes and pod sandbox, and unmounts volumes and unregisters secrets/configmaps (since Pod was in a terminal phase)
  • While still in the backoff window, wait for network / attach volumes / register pod to secret and configmap managers / re-download image secrets if necessary

Once the current backoff window has passed, kubelet:

  • Potentially re-downloads the image (utilizing network + IO and blocks other image downloads) if image pull policy specifies it (ref ).
  • Recreates the pod sandbox and probe workers
  • Recreates the containers using container runtime
  • Runs user configured prestart and poststart hooks for each container
  • Runs startup probes until containers have started (startup probes may be more expensive than the readiness probes as they often configured to run more frequently)
  • Redownloads all secrets and configmaps, as the pod has been unregistered and reregistered to the managers, while computing container environment/EnvVarFrom
  • Application runs through its own initialization logic (typically utilizing more IO)
  • Logs information about all container operations (utilizing disk IO and “spamming” logs)

The following diagram showcases these same highlights more visually and in context of the responsible API surface (Kubelet or Runtime aka CRI).

“A diagram showing Kubelet and Container Runtime code paths responsible for\nbehaviors common to all pod restarts”

 <<[UNRESOLVED non blocking answer these question from original PR or make new bugs]>>
 >Does this [old container cleanup using containerd] include cleaning up the image filesystem? There might be room for some optimization here, if we can reuse the RO layers.
 to answer question: looks like it is per runtime. need to check about leasees. also part of the value of this is to restart the sandbox.

Benchmarking

Again, let it be known that by definition this KEP will cause pods to restart faster and more often than the current status quo and such a change is desired. However, to do so as safely as possible, it is required that during the alpha period, we reevaluate the SLIs and SLOs and benchmarks related to this change and expose clearly the methodology needed for cluster operators to be able to quantify the risk posed to their specific clusters on upgrade.

To best reason about the changes in this KEP, we require the ability to determine, for a given percentage of heterogenity between “Succeeded” terminating pods, and “Failed” (aka crashing) terminating pods whose restartPolicy: Always:

  • what is the load and rate of Pod restart related API requests to the API server?
  • what are the performance (memory, CPU, and pod start latency) effects on the kubelet component? What about when considering the effects of different plugins (e.g. CSI, CNI)

Today there are alpha SLIs in Kubernetes that can observe that impact in aggregate:

  • Kubelet component CPU and memory
  • kubelet_http_inflight_requests
  • kubelet_http_requests_duration_seconds
  • kubelet_http_requests_total
  • kubelet_pod_worker_duration_seconds
  • kubelet_runtime_operations_duration_seconds
  • kubelet_pod_start_duration_seconds
  • kubelet_pod_start_sli_duration_seconds

In addition, estimates given the currently suggested changes in API requests are included in Risks and Mitigations and were deciding factors in specific changes to the backoff curves. Since the changes in this proposal are deterministic, this is pre-calculatable for a given heterogenity of quantity and rate of restarting pods.

In addition, the kube-state-metrics project already implements restart-specific metadata for metrics that can be used to observe pod restart latency in more detail, including:

  • kube_pod_container_status_restarts_total
  • kube_pod_restart_policy
  • kube_pod_start_time
  • kube_pod_created

During the alpha period, these metrics, the SIG-Scalability benchmarking tests, added kubelet performance tests, and manual benchmarking by the author against kube-state-metrics will be used to answer the above questions, tying together the container restart policy (inherited or declared), the terminal state of a container before restarting, and the number of container restarts, to articulate the observed rate and load of restart related API requests and the performance effects on kubelet.

Relationship with Job API podFailurePolicy and backoffLimit

Job API provides its own API surface for describing alterntive restart behaviors, from KEP-3329: Retriable and non-retriable Pod failures for Jobs , in beta as of Kubernetes 1.30. The following example from that KEP shows the new configuration options: backoffLimit, which controls for number of retries on failure, and podFailurePolicy, which controls for types of workload exit codes or kube system events to ignore against that backoffLimit.

apiVersion: v1
kind: Job
spec:
  [ . . . ]
  backoffLimit: 3
  podFailurePolicy:
    rules:
    - action: FailJob
      onExitCodes:
        containerName: main-job-container
        operator: In
        values: [1,2,3]
    - action: Ignore
      onPodConditions:
      - type: DisruptionTarget

The implementation of KEP-3329 is entirely in the Job controller, and the restarts are not handled by kubelet at all; in fact, use of this API is only available if the restartPolicy is set to Never (though kubernetes#125677 wants to relax this validation to allow it to be used with other restartPolicy values). As a result, to expose the new backoff curve to Jobs using this feature, the updated backoff curve must also be implemented in the Job controller. This is currently considered out of scope of the first alpha implementation of this design.

Relationship with ImagePullBackOff

ImagePullBackoff is used, as the name suggests, only when a container needs to pull a new image. If the image pull fails, a backoff decay is used to make later retries on the image download wait longer and longer. This is configured internally independently (here ) from the backoff for container restarts (here ).

This KEP considers changes to ImagePullBackoff as out of scope, so during implementation this will keep the same backoff. This is both to reduce the number of variables during the benchmarking period for the restart counter, and because the problem space of ImagePullBackoff could likely be handled by a completely different pattern, as unlike with CrashLoopBackoff the types of errors with ImagePullBackoff are less variable and better interpretable by the infrastructure as recoverable or non-recoverable (i.e. 404s).

Relationship with k/k#123602

It was observed that there is a bug with the current requeue behavior, described in https://github.com/kubernetes/kubernetes/issues/123602 . The first restart will have 0 seconds delay instead of the advertised initial value delay, because the backoff object will not be initialized until a key is generated, which doesn’t happen until after the first restart of a pod (see ref ). That first restart will also not impact future backoff calculations, so the observed behavior is closer to:

  • 0 seconds delay for first restart
  • 10 seconds for second restart
  • 10 * 2^(restart_count - 2) for subsequent restarts

By watching a crashing pod, we can observe that it does not enter a CrashLoopBackoff state or behave as advertised until after that first “free” restart:

# a pod that crashes every 10s
thing  0/1  Pending  0 29s
thing  0/1  Pending  0 97s
thing  0/1  ContainerCreating  0 97s
thing  1/1  Running  0 110s
thing  0/1  Completed  0 116s                       # first run completes
thing  1/1  Running  1 (4s ago)  118s               # no crashloopbackoff observed, 1 restart tracked
thing  0/1  Completed  1 (10s ago)  2m4s            # second runc ompletes
thing  0/1  CrashLoopBackOff 1 (17s ago)  2m19s     # crashloopbackoff observed
thing  1/1  Running  2 (18s ago)  2m20s             # third run starts
thing  0/1  Completed  2 (23s ago)  2m25s
thing  0/1  CrashLoopBackOff 2 (14s ago)  2m38s     # crashloopbackoff observed again
thing  1/1  Running  3 (27s ago)  2m51s
thing  0/1  Completed  3 (32s ago)  2m56s

Ultimately, being able to predict the exact number of restarts or remedying up to 10 seconds delay for the advertised behavior is not the ultimate goal of this KEP, though certain assumptions were made when calculating risks, mitigations, and analyzing existing behavior that are affected by this bug. Since the behavior is already changing as part of this KEP, and similar code paths will be changed, it is within scope of this KEP to address this bug if it is a blocker to implementation for alpha; it can wait until beta otherwise. This is represented below in the Graduation Criteria .

Test Plan

[x] I/we understand the owners of the involved components may require updates to existing tests to make this code solid enough prior to committing the changes necessary to implement this enhancement.

This feature requires two levels of testing: the regular enhancement testing (described in the template below) and the stress/benchmark testing required to increase confidence in ongoing node stability given heterogeneous backoff timers and timeouts.

Some stress/benchmark testing will still be developed as part of the implementation of this enhancement, including the kubelet_perf tests indicated in the e2e section below.

Some of the benefit of pursuing this change in alpha is to also have the opportunity to run against the existing SIG-Scalability performance and benchmarking tests within an alpha candidate. In addition, manual benchmark testing with GKE clusters can be performed by the author as described in Design Details , and evaluated as candidates for formal, periodic benchmark testing in the Kubernetes testgrid.

Prerequisite testing updates
Unit tests
Integration tests
  • k8s.io/kubernetes/test/integration/kubelet: testgrid , latest prow
    • test with and without feature flags enabled
e2e tests
  • Crashlooping container that restarts some number of times (ex 10 times), timestamp the logs and read it back in the test, and expect the diff in those time stamps to be minimum the backoff, with a healthy timeout
  • k8s.io/kubernetes/test/e2e/node/kubelet_perf: new suite for a given percentage of heterogenity between “Succeeded” terminating pods, and crashing pods whose restartPolicy: Always or restartPolicy: OnFailure,
    • what is the load and rate of Pod restart related API requests to the API server?
    • what are the performance (memory, CPU, and pod start latency) effects on the kubelet component?
    • With different plugins (e.g. CSI, CNI)

Graduation Criteria

Alpha

  • New ReduceDefaultCrashLoopBackoffDecay feature flag which, when enabled, changes CrashLoopBackOff behavior (and ONLY the CrashLoopBackOff behavior) to a 2x decay curve starting at 1s initial value, 1 minute maximum backoff for all workloads, therefore affecting workload configured with restartPolicy: Always or restartPolicy: OnFailure
    • Requires a refactor of image pull backoff from container restart backoff object
  • Maintain current 10 minute recovery threshold by refactoring backoff counter reset threshold and explicitly implementing container restart backoff behavior at the current 10 minute recovery threshold
  • Initial e2e tests setup and enabled
  • Initial unit tests covering new behavior
    • Especially confirming the backoff object is set properly depending on the feature gates set as per the Conflict Resolution policy
  • Low confidence in the specific numbers/decay rate

Beta

  • Gather feedback from developers and surveys
  • High confidence in the specific numbers/decay rate
  • Benchmark restart load methodology and analysis published and discussed with SIG-Node
  • Discuss PLEG polling loops and its effect on specific decay rates
  • Additional e2e and benchmark tests, as identified during alpha period, are in Testgrid and linked in KEP

GA

  • 2 Kubernetes releases soak in beta
  • Completely finalize the decay curves and document them thoroughly
  • Remove the feature flag code
  • Confirm the exponential backoff decay curve related tests and code are still in use elsewhere and do not need to be removed

Upgrade / Downgrade Strategy

For ReduceDefaultCrashLoopBackoffDecay:

For an existing cluster, no changes are required to configuration, invocations or API objects to make an upgrade.

To use the enhancement, the alpha feature gate is turned on. In the future when (/if) the feature gate is removed, no configurations would be required to be made, and the default behavior of the baseline backoff curve would – by design – be changed.

To stop use of this enhancement, the entire cluster must be restarted or just kubelet must restart with the ReduceDefaultCrashLoopBackoffDecay feature gate turned off. Since kubelet does not cache the backoff object, on kubelet restart Pods will start at the beginning of their backoff curve. The exact backoff curve a given Pod will use will be the original one with initial value 10s.

Conflict resolution

KEP-5593: Configure the max CrashLoopBackOff delay describes the addition of a per-node configurable max delay for CrashLoopBackOff. If this configuration is enabled and set, its value will take precedence over the new defaults described in this proposal.

scenarioReduceDefaultCrashLoopBackoffDecayEnableKubeletCrashLoopBackoffMaxEffective initial value
today’s behaviordisableddisabled10s
new default onlyenableddisabled1s
faster per node configenabled2s2s
slower per node configenabled10s10s
"enabled300s300s

Version Skew Strategy

For the default backoff curve, no coordination must be done between the control plane and the nodes; all behavior changes are local to the kubelet component and its start up configuration. An n-3 kube-proxy, n-1 kube-controller-manager, or n-1 kube-scheduler without this feature available is not affected when this feature is used, nor will different CSI or CNI implementations. Code paths that will be touched are exclusively in kubelet component.

An n-3 kubelet without this feature available will behave like normal, with the original CrashLoopBackOff behavior.

While the CRI is a consumer of the result of this change (as it will receive more requests to start containers), it does not need to be updated at all to take advantage of this feature as the restart logic is entirely in process of the kubelet component.

Production Readiness Review Questionnaire

Feature Enablement and Rollback

How can this feature be enabled / disabled in a live cluster?
  • Feature gate (also fill in values in kep.yaml)
    • Feature gate name: ReduceDefaultCrashLoopBackoffDecay
      • Components depending on the feature gate: kubelet
Does enabling the feature change any default behavior?

Yes, ReduceDefaultCrashLoopBackoffDecay changes the default backoff curve for exiting Pods (including sidecar containers) when restartPolicy is either OnFailure or Always.

Since we currently only have anecdotal benchmarking, the alpha will implement more conservative modeled initial value and maximum backoff, though less conservative from the 1.31 proposal as initial manual data indicated faster maximum backoff caps were safe. The new values for all CrashLoopBackOff behavior for all workloads will be initial value=1s, max=60s. (See this section for more rationale.)

Can the feature be disabled once it has been enabled (i.e. can we roll back the enablement)?

Yes, disable is supported.

If disabled, once kubelet is restarted it will initialize the default backoff to the prior initial value of10s, and all restart delays thereafter will be calculated against this equation. Since changing this configuration will at minimum require a restart of kubelet to take effect, restart delays will begin at the beginning of their backoff curve since the backoff is not cached between kubelet restarts.

What happens if we reenable the feature if it was previously rolled back?

The feature can also be reenabled.

If reenabled, once kubelet is restarted it will initialize the default backoff again to the new initial value of 1s and maximum backoff to 1 minute, and all restart delays thereafter will be calculated against this equation.

Are there any tests for feature enablement/disablement?

At minimum, unit tests will be included confirming the backoff object is set properly depending on the feature gates set as per the Conflict Resolution policy.

Rollout, Upgrade and Rollback Planning

How can a rollout or rollback fail? Can it impact already running workloads?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

What specific metrics should inform a rollback?

This biggest bottleneck expected will be kubelet, as it is expected to get more restart requests and have to trigger all the overhead discussed in Design Details more often. Cluster operators should be closely watching these existing metrics:

  • Kubelet component CPU and memory
  • kubelet_http_inflight_requests
  • kubelet_http_requests_duration_seconds
  • kubelet_http_requests_total
  • kubelet_pod_worker_duration_seconds
  • kubelet_runtime_operations_duration_seconds

Most important to the perception of the end user is Kubelet’s actual ability to create pods, which we measure in the latency of a pod actually starting compared to its creation timestamp. The following existing metrics are for all pods, not just ones that are restarting, but at a certain saturation of restarting pods this metric would be expected to become slower and must be watched to determine rollback:

  • kubelet_pod_start_duration_seconds
  • kubelet_pod_start_sli_duration_seconds
Were upgrade and rollback tested? Was the upgrade->downgrade->upgrade path tested?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

Is the rollout accompanied by any deprecations and/or removals of features, APIs, fields of API types, flags, etc.?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

Monitoring Requirements

How can an operator determine if the feature is in use by workloads?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

How can someone using this feature know that it is working for their instance?

«[UNRESOLVED beta]» Fill out when targeting beta to a release.

  • Events

    • Event Reason:

  • API .status

    • Condition name:
    • Other field:

  • Other (treat as last resort)

    • Details:

    «[/UNRESOLVED]»

What are the reasonable SLOs (Service Level Objectives) for the enhancement?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

What are the SLIs (Service Level Indicators) an operator can use to determine the health of the service?

«[UNRESOLVED beta]» Fill out when targeting beta to a release.

  • Metrics
    • Metric name:
    • [Optional] Aggregation method:
    • Components exposing the metric:
  • Other (treat as last resort)
    • Details:

«[/UNRESOLVED]»

Are there any missing metrics that would be useful to have to improve observability of this feature?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

Dependencies

Does this feature depend on any specific services running in the cluster?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

Scalability

Will enabling / using this feature result in any new API calls?

It will not result in NEW API calls but it will result in MORE API calls. See the Risks and Mitigations section for the back-of-the-napkin math on the increase in especially /pods API endpoint calls, which initial benchmarking showed an aggressive case (110 instantly restarting single-contaier pods) reaching 5 QPS before slowing down to 2 QPS.

Will enabling / using this feature result in introducing new API types?

No, this KEP will not result in any new API types.

Will enabling / using this feature result in any new calls to the cloud provider?

No, this KEP will not result in any new calls to the cloud provider.

Will enabling / using this feature result in increasing size or count of the existing API objects?

No, this KEP will not result in increasing size or count of the existing API objects.

Will enabling / using this feature result in increasing time taken by any operations covered by existing SLIs/SLOs?

Maybe! As containers will be restarting more, this may affect “Startup latency of schedulable stateless pods”, “Startup latency of schedule stateful pods”. This is directly the type of SLI impact that a) the split between the default behavior change and the per node max CrashLoopBackOff delay configuration proposed in KEP-5593 - Configure the max CrashLoopBackOff delay is trying to mitigate, and b) one of the targets of the benchmarking period during alpha.

Will enabling / using this feature result in non-negligible increase of resource usage (CPU, RAM, disk, IO, …) in any components?

Yes! We expect more CPU usage of kubelet as it processes more restarts. In initial manual benchmarking tests, CPU usage of kubelet increased 2x on nodes saturated with 110 instantly crashing single-container pods. During the alpha benchmarking period, we will be quantifying that amount in fully and partially saturated nodes with both the new default backoff curve and the minimum per node backoff curve proposed in KEP-5593 - Configure the max CrashLoopBackOff delay .

Can enabling / using this feature result in resource exhaustion of some node resources (PIDs, sockets, inodes, etc.)?

Based on the initial benchmarking, no, which was based on manual benchmarking tests on nodes saturated with 110 instantly crashing single-container pods. However, more “normal” cases (with lower percentage of crashing pods) and even more pathological cases (with higher container-density Pods, sidecars, n/w traffic, and large image downloads) will be tested further during this alpha period to better articulate the risk against the most aggressive restart characteristics.

Troubleshooting

How does this feature react if the API server and/or etcd is unavailable?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

What are other known failure modes?
What steps should be taken if SLOs are not being met to determine the problem?

«[UNRESOLVED beta]» Fill out when targeting beta to a release. «[/UNRESOLVED]»

Implementation History

  • 04-23-2024: Problem lead opted in by SIG-Node for 1.31 target (enhancements#4603 )
  • 06-04-2024: KEP proposed to SIG-Node focused on providing limited alpha changes to baseline backoff curve, addition of opt-in Rapid curve, and change to constant backoff for Succeeded Pods
  • 06-06-2024: Removal of constant backoff for Succeeded Pods
  • 09-09-2024: Removal of RestartPolicy: Rapid in proposal, removal of PRR, in order to merge a provisional and address the new 1.32 design in a cleaner PR
  • 09-20-2024: Rewrite for 1.32 design focused on per-node config in place of RestartPolicy: Rapid
  • 10-02-2024: PRR added for 1.32 design
  • 10-29-2025: Split into two separate proposals. This KEP now only covers the change to the default backoff curve. The per-node configuration is covered in KEP-5593 - Configure the max CrashLoopBackOff delay .

Drawbacks

CrashLoopBackoff behavior has been stable and untouched for most of the Kubernetes lifetime. It could be argued that it “isn’t broken”, that most people are ok with it or have sufficient and architecturally well placed workarounds using third party reaper processes or application code based solutions, and changing it just invites high risk to the platform as a whole instead of individual end user deployments. However, per the Motivation section, there are emerging workload use cases and a long history of a vocal minority in favor of changes to this behavior, so trying to change it now is timely. Obviously we could still decide not to graduate the change out of alpha if the risks are determined to be too high or the feedback is not positive.

Though the issue is highly upvoted, on an analysis of the comments presented in the canonical tracking issue Kubernetes#57291 , 22 unique commenters were requesting a constant or instant backoff for Succeeded Pods, 19 for earlier recovery tries, and 6 for better late recovery behavior; the latter is arguably even more highly requested when also considering related issue Kubernetes#50375 . Though an early version of this KEP also addressed the Success case, in its current version this KEP really only addresses the early recovery case, which by our quantitative data is actually the least requested option. That being said, other use cases described in User Stories that don’t have quantitative counts are also driving forces on why we should address the early recovery cases now. On top of that, compared to the late recovery cases, early recovery is more approachable and easily modelable and improving benchmarking and insight can help us improve late recovery later on (see also the related discussion in Alternatives here and here ).

Alternatives

Global override

Allow an override of the global constant of a maximum backoff period (or other settings) in kubelet configuration.

Per exit code configuration

One alternative is for new container spec values that allow individual containers to respect overrides on the global timeout behavior depending on the exit reason. These overrides will exist for the following reasons:

  • image download failures
  • workload crash: any non-0 exit code from the workload itself
  • infrastructure events: terminated by the system, e.g. exec probe failures, OOMKill, or other kubelet runtime errors
  • success: a 0 exit code from the workload itself

These had been selected because there are known use cases where changed restart behavior would benefit workloads epxeriencing these categories of failures.

RestartPolicy: Rapid

In the 1.31 version of this proposal, this KEP proposed a two-pronged approach to revisiting the CrashLoopBackoff behaviors for common use cases:

  1. modifying the standard backoff delay to start faster but decay to the same 5m threshold
  2. allowing Pods to opt-in to an even faster backoff curve with a lower max cap

For step (2), the method to allow the Pods to opt-in was by a new enum value, Rapid, for a Pod’s RestartPolicy. In this case, Pods and restartable init (aka sidecar) containers would be able to set a new OneOf value, restartPolicy: Rapid, to opt in to an exponential backoff decay that starts at a lower initial value and maximizes to a lower cap. This proposal suggested we start with a new initial value of 250ms and cap of 1 minute, and analyze its impact on infrastructure during alpha.

“A graph showing today’s decay curve against a curve with an initial value of\n250ms and a cap of 1 minute for a workload failing every 10 s”

Why not?: There was still a general community consensus that even though this was opt-in, giving the power to reduce the backoff curve to users in control of the pod manifest – who as a persona are not necessarily users with cluster-wide or at least node-wide visibility into load and scheduling – was too risky to global node stability.

In addition, overriding an existing Pod spec enum value, while convenient, required detailed management of the version skew period, at minimum across 3 kubelet versions per the API policy for new enum values in existing fields . In practice this meant the API server and kubelets across all nodes must be coordinated.

Firstly, Rapid must be a valid option to the restartPolicy in the API server (which would only be possible if/when the API server was updated), and secondly, the Rapid value must be interpretable by all kubelets on every node. Unfortunately, it is not possible for the API server to be aware of what version each kubelet is on, so it cannot serve Rapid as Always preferentially to each kubelet depending on its version. Instead, each kubelet must be able to handle this value properly, both at n-3 kubelet version and – more easily – at its contemporary kubelet version. For updated kubelet versions, each kubelet would be able to detect if it has the feature gate on, and if so, interpret Rapid to use the new rapid backoff curve; and if the feature gate is off, interpret it instead as Always. But at earlier kubelet versions, Rapid must be ignored in favor of Always. Unfortunately for this KEP, the default value for restartPolicy is Never, though even more unfortunately, it looks like different code paths use a different default value (thank you @tallclair !!; 1 defaults to Always, 2 defaults to OnFailure, 3 defaults to Always, and 4 defaults to Never), so if kubelet drops unexpected enum values for restartPolicy, a Pod with Rapid will be misconfigured by an old kubelet.

Flat-rate restarts for Succeeded Pods

We start from the assumption that the “Succeeded” phase of a Pod in Kubernetes means that all workloads completed as expected. Most often this is colloquially referred to as an exit code 0, as this exit code is what is caught by Kuerbenetes for linux containers.

The wording of the public documentation (ref ) and the naming of the CrashLoopBackOff state itself implies that it is a remedy for a container not exiting as intended, but the restart delay decay curve is applied to even successful pods if their restartPolicy = Always. On the canonical tracking issue for this problem, a significant number of requests focus on how an exponential decay curve is inappropriate for workloads completing as expected, and unnecessarily delays healthy workloads from being rescheduled.

This alternative would vastly simplify and cut down on the restart delays for workloads completing as expected, as detectable by their transition through the “Succeeded” phase in Kubernetes. The target is to get as close to the capacity of kubelet to instantly restart as possible, anticipated to be somewhere within 0-10s flat rate + jitter delay for each restart, pending benchmarking in alpha.

Fundamentally, this change is taking a stand that a successful exit of a workload is intentional by the end user – and by extension, if it has been configured with restartPolicy = Always, that its impact on the Kubernetes infrastructure when restarting is by end user design. This is in contrast to the prevailing Kubernetes assumption that on its own, the Pod API best models long-running containers that rarely or never exit themselves with “Success”; features like autoscaling, rolling updates, and enhanced workload types like StatefulSets assume this, while other workload types like those implemented with the Job and CronJob API better model workloads that do exit themselves, running until Success or at predictable intervals. If this alternative was pursued, we would instead interpret an end user’s choice to run a relatively fast exiting Pod (under 10 minutes) with both a successful exit code and configured to restartPolicy: Always, as their intention to restart the pod indefinitely without penalty.

“A graph comparing today’s CrashLoopBackOff decay curve with a linear 5s delay for a container that exits successfully every 10s”

Why not?: This provides a workaround (and therefore, opportunity for abuse), where application developers could catch any number of internal errors of their workload in their application code, but exit successfully, forcing extra fast restart behavior in a way that is opaque to kubelet or the cluster operator. Something similar is already being taken advantage of by application developers via wrapper scripts, but this causes no extra strain on kubelet as it simply causes the container to run indefinitely and uses no kubelet overhead for restarts.

On Success and the 10 minute recovery threshold

The original version of this proposal included a change specific to Pods transitioning through the “Succeeded” phase to have flat rate restarts. On further discussion, this was determined to be both too risky and a non-goal for Kubernetes architecturally, and moved into the Alternatives section. The risk for bad actors overloading the kubelet is described in the Alternatives section and is somewhat obvious. The larger point of it being a non-goal within the design framework of Kubernetes as a whole is less transparent and discussed here.

After discussion with early Kubernetes contributors and members of SIG-Node, it’s become more clear to the author that the prevailing Kubernetes assumption is that that on its own, the Pod API best models long-running containers that rarely or never exit themselves with “Success”; features like autoscaling, rolling updates, and enhanced workload types like StatefulSets assume this, while other workload types like those implemented with the Job and CronJob API better model workloads that do exit themselves, running until Success or at predictable intervals. In line with this assumption, Pods that run “for a while” (longer than 10 minutes) are the ones that are “rewarded” with a reset backoff counter – not Pods that exit with Success. Ultimately, non-Job Pods are not intended to exit Successfully in any meaningful way to the infrastructure, and quick rerun behavior of any application code is considered to be an application level concern instead.

Therefore, even though it is widely desired by commenters on Kubernetes#57291 , this KEP is not pursuing a different backoff curve for Pods exiting with Success any longer.

For Pods that are today intended to rerun after Success, it is instead suggested to

  1. exec the application logic with an init script or shell that reruns it indefinitely, like that described in Kubernetes#57291#issuecomment-377505620 :
#!/bin/bash

while true; do
    python /code/app.py
done
  1. or, if a shell in particular is not desired, implement the application such that it starts and monitors the restarting process inline, or as a subprocess/separate thread/routine

The author is aware that these solutions still do not address use cases where users have taken advantage of the “cleaner” state “guarantees” of a restarted pod to alleviate security or privacy concerns between sequenced Pod runs.

This decision here does not disallow the possibility that this is solved in other ways, for example:

  1. the Job API, which better models applications with meaningful Success states, introducing a variant that models fast-restarting apps by infrastructure configuration instead of by their code, i.e. Jobs with restartPolicy: Always and/or with no completion count target
  2. support restart on exit 0 as a directive in the container runtime or as a common independent tool, e.g. RESTARTABLE CMD mycommand or restart-on-exit-0 -- mycommand -arg -arg -arg
  3. formalized reaper behavior such as discussed in Kubernetes#50375

However, there will always need to be some throttling or quota for restarts to protect node stability, so even if these alternatives are pursued separately, they will depend on the analysis and benchmarking implementation during this KEP’s alpha stage to stay within node stability boundaries.

Workloads must opt-in with restartPolicy: FastOnSuccess, as a foil to restartPolicy: OnFailure. In this case, existing workloads with restartPolicy: Always or ones not determined to be in the critical path would use the new, yet still relatively slower, front-loaded decay curve and only those updated with FastOnSuccess would get truer fast restart behavior. However, then it becomes impossible for a workload to opt into both restartPolicy: FastOnSuccess and restartPolicy: Rapid.

When both a flat rate Succeeded and a Rapid implementation were combined in this proposal, depending on the variation of the initial value, the first few restarts of a failed container would be faster than a successful container, which at first look seems backwards.

“A graph showing the intersection of delay curves between a linear rate for\nsuccess and an exponential rate for rapid\nfailures”

However, based on the use cases, this is still correct because the goal of restarting failed containers is to take maximum advantage of quickly recoverable situations, while the goal of restarting successful containers is only to get them to run again sometime and not penalize them with longer waits later when they’ve behaving as expected.

Front loaded decay with interval

In an effort to anticipate API server stability ahead of the experiential data we can collect during alpha, the proposed changes are to both reduce the initial value, and include a step function to a higher delay cap once the decay curve triggers the same number of total restarts as experienced today in a 10 minute time horizon, in order to approximate load (though not rate) of pod restart API server requests.

In short, the current proposal is to implement a new initial value of 1s, and a catch-up delay of 569 seconds (almost 9.5 minutes) on the 6th retry.

“A graph showing the delay interval function needed to maintain restart\nnumber”

Why not?: If we keep the same decay rate as today (2x), no matter what the initial value is, the majority of the added restarts are in the beginning. Even if we “catch up” the delay to the total number of restarts, we expect problem with kubelet to happen more as a result of the faster restarts in the beginning, not because we spaced out later ones longer. In addition, we are only talking about 3-7 more restarts per backoff, even in the fastest modeled case (25ms initial value), which is not anticipated to be a sufficient enough hit to the infrastructure to warrant implementing such a contrived backoff curve.

“A graph showing the changes to restarts depending on some initial values”

Late recovery

There are many use cases not covered in this KEP’s target User Stories that share the common properties of being concerned with the recovery timeline of Pods that have already reached their max cap for their backoff. Today, some of these Pods will have their backoff counters reset once they have run successfully for 10 minutes. However, user stories exist where

  1. the Pod will never successfully run for 10 minutes by design
  2. the user wants to be able to force the decay curve to restart (Kubernetes#50375 )
  3. the application knows what to wait for and could communicate that to the system (like a restart probe)

As discussed here in Alternatives Considered , the first case is unlikely to be address by Kubernetes.

The latter two are considered out of scope for this KEP, as the most common use cases are regarding the initial recovery period. If there is still sufficient appetite after this KEP reaches beta to specifically address late recovery scenarios, then that would be a good time to address them without the noise and change of this KEP.

More complex heuristics

The following alternatives are all considered by the author to be in the category of “more complex heuristics”, meaning solutions predicated on kubelet making runtime decisions on a variety of system or workload states or trends. These approaches all share the common negatives of being:

  1. harder to reason about
  2. of unknown return on investment for use cases relative to the investment to implement
  3. expensive to benchmark and test

That being said, after this initial KEP reaches beta and beyond, it is entirely possible that the community will desire more sophisticated behavior based on or inspired by some of these considered alternatives. As mentioned above, the observability and benchmarking work done within the scope of this KEP can help users provide empirical support for further enhancements, and the following review may be useful to such efforts in the future.

  • Expose podFailurePolicy to nonJob Pods
  • Subsidize successful running time/readinessProbe/livenessProbe seconds in current backoff delay
  • Detect anomalous workload crashes

Appendix A

Kubelet SyncPod

  • Update API status
  • Wait for network ready
  • Register pod to secrets and configmap managers
  • Create/update QOS cgroups for a restarting, unkilled pod if enabled
  • Create mirror pod for static pod if deleted
  • Make pod data directories
  • Wait for volumes to attach/mount, up to 2 minutes per sync loop
  • Get image pull secrets
  • Add pod to probe manager (start probe workers)
  • Vertical pod scaling; potentially do a resize on podmanager/statusmanager

Runtime SyncPod

  • Fix/create pod sandbox if necessary
  • Start ephemeral containers
  • Start init/sidecar containers
  • Start normal containers
  • Start =
    • Get image volumes
    • If still in backoff, error; will come back next round
      • Error caught by kubelet, isTerminal=False
    • Pull image volumes if enabled
    • Pull image
    • Generate container config, including generating env and pulling secrets
    • Create container
    • User Pre start hook
    • Start container
    • User Post start hook

Kubelet SyncTerminatingPod + runtime killPod

  • Update Pod status
  • Stop probes
  • Kill pod (with grace if enabled)
    • Send kill signals and wait
    • Stop sandboxes
    • update QOS cgroups if enabled
  • Remove probes
  • Deallocate DRA resources, if enabled
  • Set the Pod status again with exit codes

Kubelet SyncTerminatedPod

  • Update Pod status
  • Unmount volumes (up to 2 minutes 3 seconds per sync loop)
  • Unregister secret and configmap
  • Remove cgroups for qos if enabled
  • Release user namespace (if enabled, needs I/O)
  • Update Pod status again

Infrastructure Needed (Optional)
